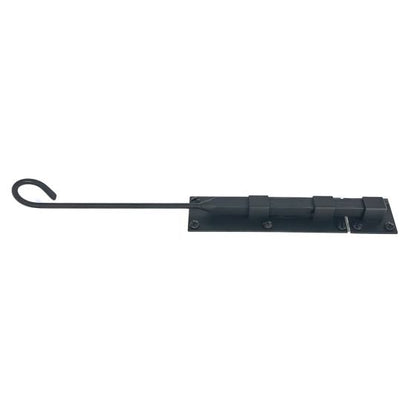

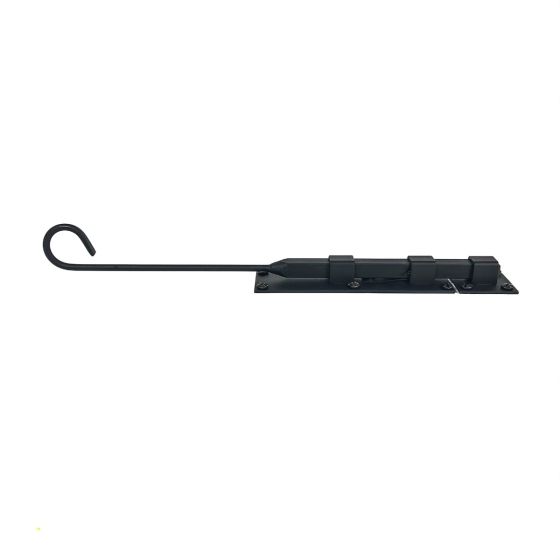

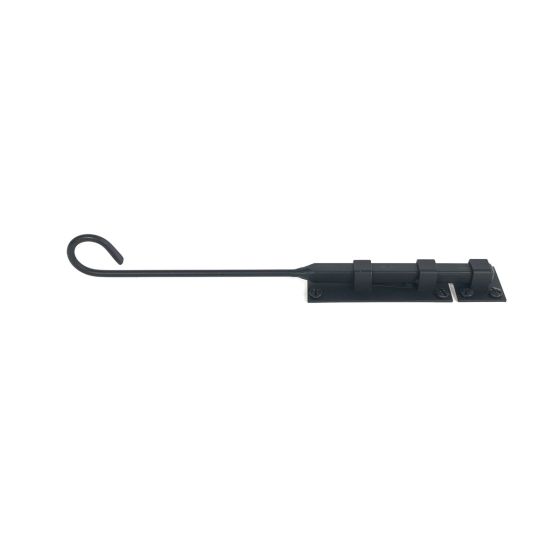

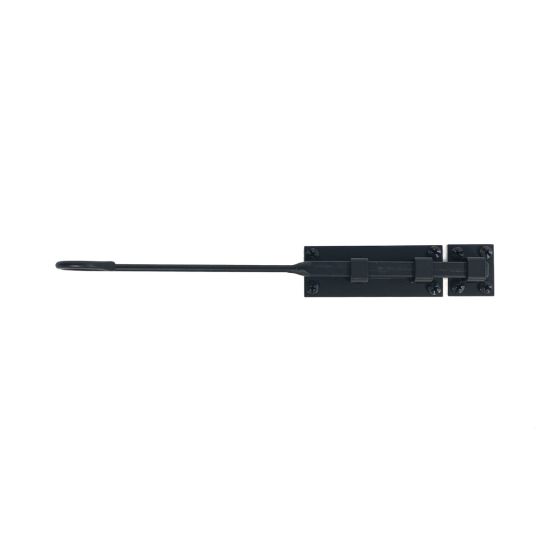

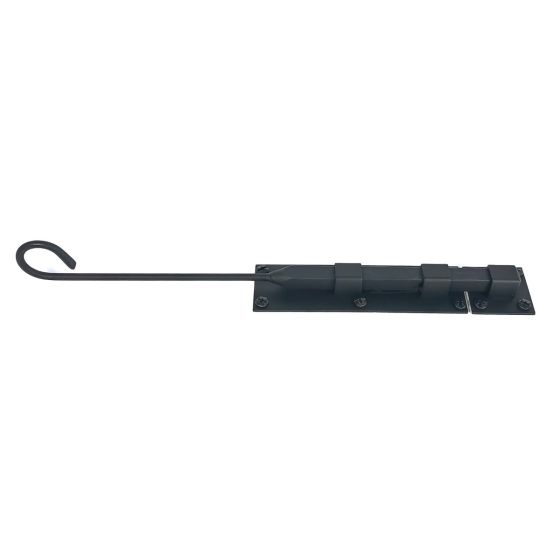

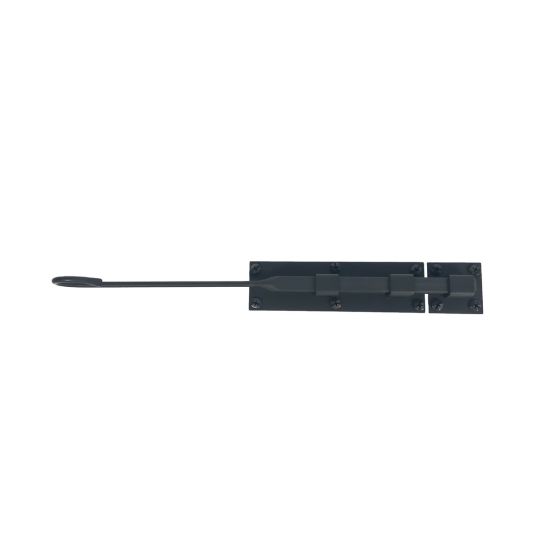

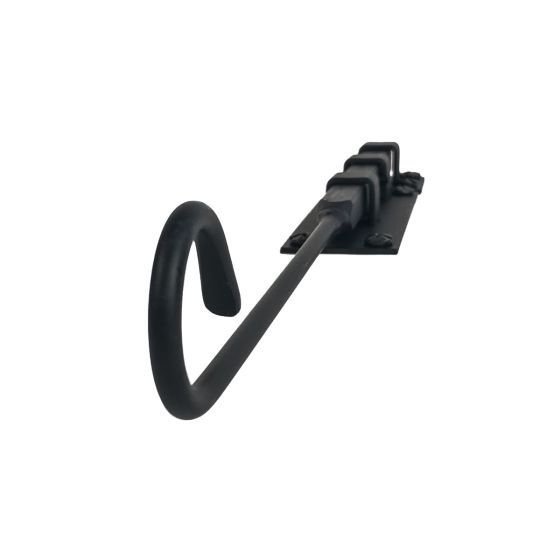

Shutter Latches - Forged Iron Cane Bolt Latch - Multiple Sizes Available - Matte Black Finish - Sold Individually

These cane bolts are functional and stylish and can be used for any door for added security. They are available in 12", 14", and 23-3/4" sizes, and have a matte black finish.

Product Specifications:

• Shutter Latches
• Forged Iron Cane Bolt Latch
• Material: Steel
• Finish: Matte Black
• Sizes Available:
  • 12" Inch
    • Overall Bolt Length: 12" Inch
    • Throw: 1-3/16" Inch
    • Main Pad: 1-1/2" Inch x 4" Inch
    • Bolt Diameter: 7/16" Inch
    • Cane Diameter: 0.21" Inch
    • Projection: 1-3/4" Inch

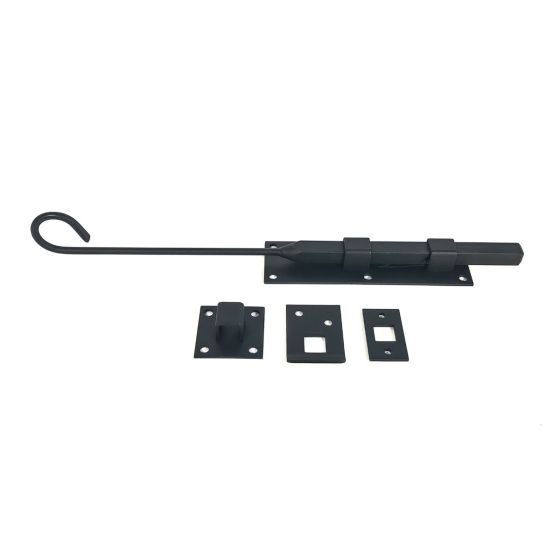

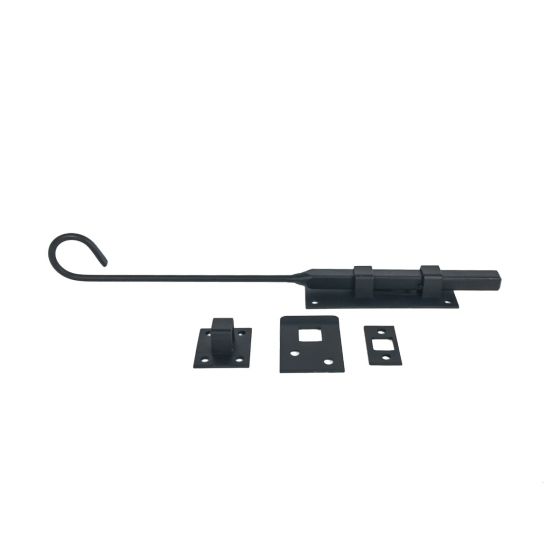

    • Strikes included: Surface, rim, and mortise
    • Spring loaded for vertical or horizontal use
    • Includes 6, #8 x 3/4" pyramid head and 2, #7 x 1" flat head screws (all screws are stainless steel)
  • 14" Inch
    • Overall Bolt Length: 14" Inch
    • Throw: 1-5/8" Inch
    • Main Pad: 1-3/4" Inch x 6" Inch
    • Projection: 1-1/2" Inch projection at curl, 13/16" Inch projection at the body
    • Strikes included: Surface, rim, and mortise
    • Spring loaded for vertical or horizontal use
    • Includes 10, #12 x 1-1/4" and 2, #8 x 3/4" pyramid head screws and 2, #7 x 1" flat head screws (all screws are stainless steel)

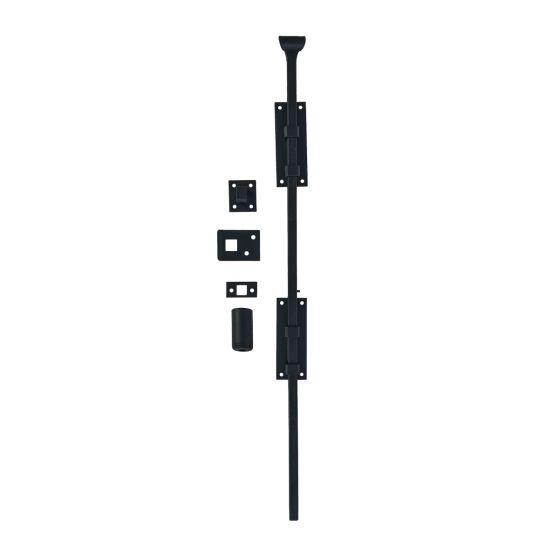

  • 22-3/4" Inch
    • Overall Bolt Length: 22-5/8" Inch
    • Throw: Variable throw based on pad placement
    • Main Pads: 1-1/2" Inch x 4" Inch
    • 7/16" square bolt
    • Projection: 1-1/4" Inch
    • Surface strike, mortise strike, and cane cup included
    • Spring loaded for vertical or horizontal use
    • Includes 8, #8 x 3/4" pyramid head, 4, #8 x 1" pyramid head,  and 2, #7 x 1" flat head screws (all screws are stainless steel)
  • Made in the USA
  • Sold individually

Installation Tips for 12" and 22-3/4" Cane Bolts:

• For bolt and surface strike install with #8 screws, predrill with 7/64" drill bit for soft wood or 1/8" drill bit for hardwood
• For mortise and rim strike install with #7 flat head screws, predrill with 3/32" drill bit for softwood or 7/64" drill bit for hardwood
• Hand tighten screws, do not use power tools with screws.
• When installing decorative hardware use hand tools in good condition

Installation Tips for 14" Cane Bolt:

• Predrill for main body, 5/32" drill bit for hardwood, 3/32" drill bit for softwood.
• Hand tighten screws only.
